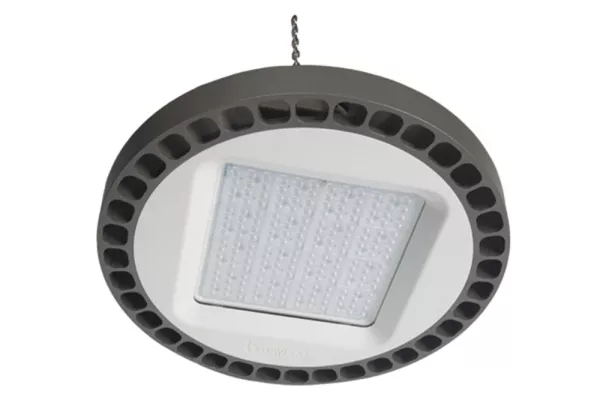

BAYLED CIRCLE HIGHBAY
LED high-performance High-Bays with wide & narrow beam light distribution.
Features
Projects
General Features for BAYLED CIRCLE HIGHBAY
High-Bays made of aluminium die cast,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
electrostatic powder coating.
Lens angle 22°-30°-40°-60°-90°
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C

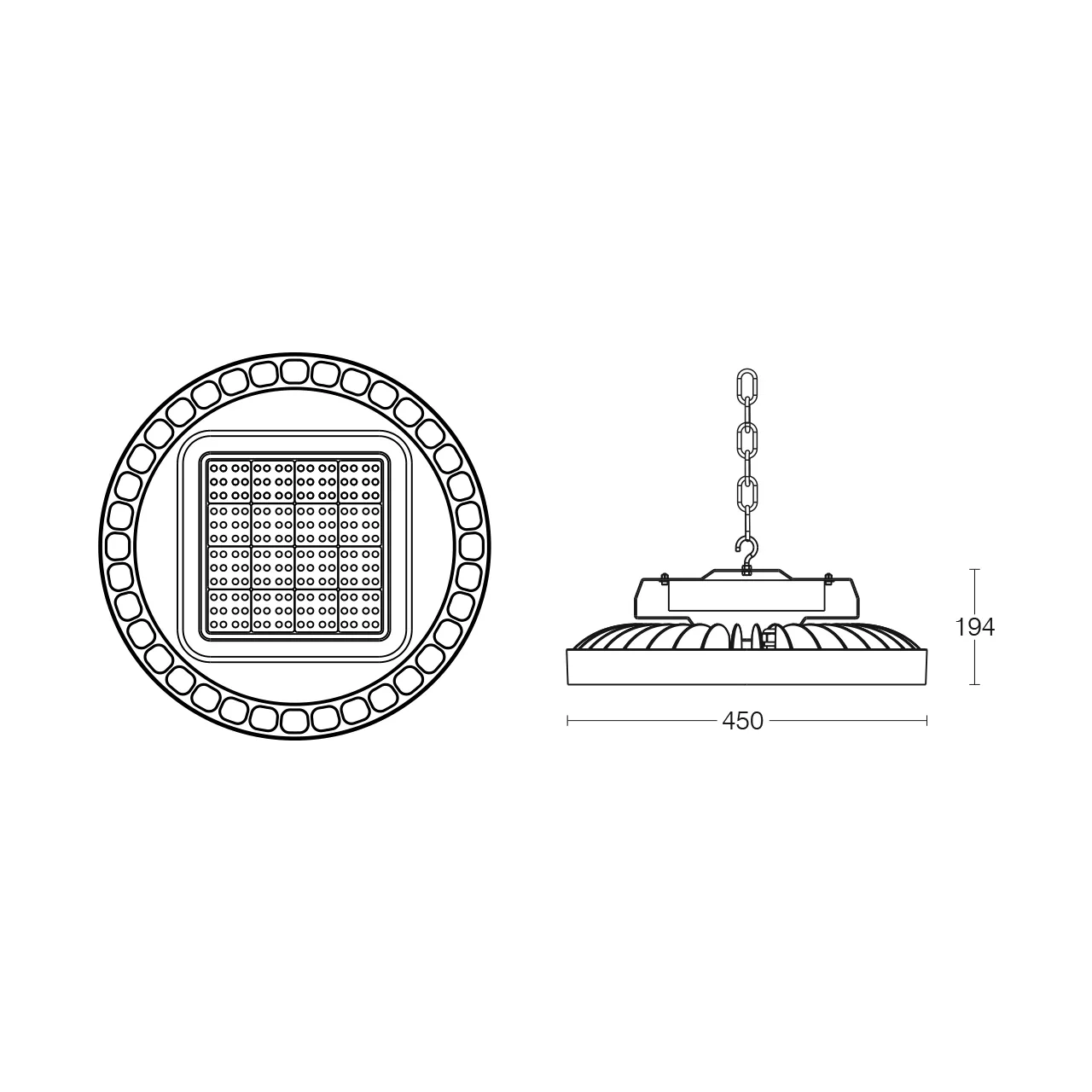

Wind catching area: 0,12 m²
Weight: 9kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
– Conformity mark.Max. Delivered lumen output
see catalog product PDF
Colour Configuration
3000K / 4000K
