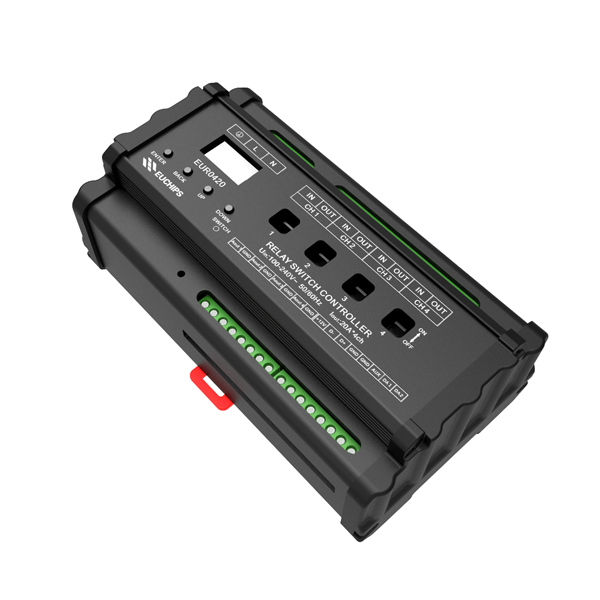

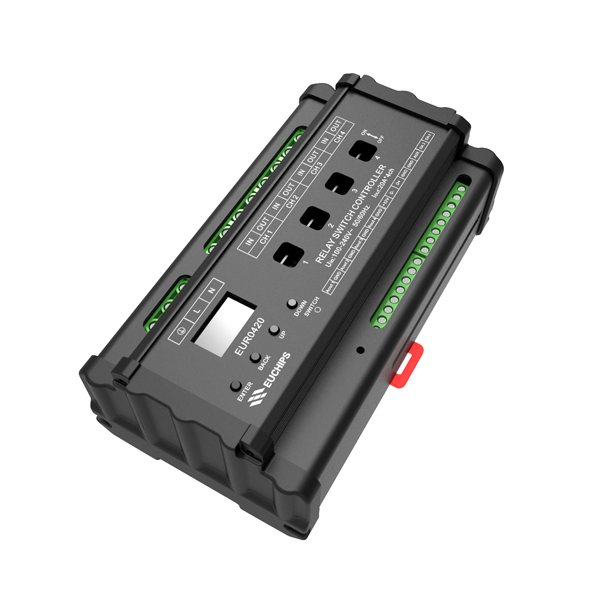

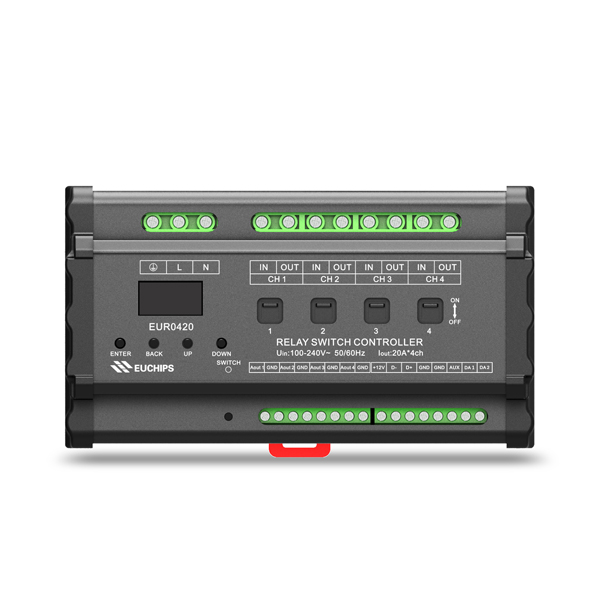

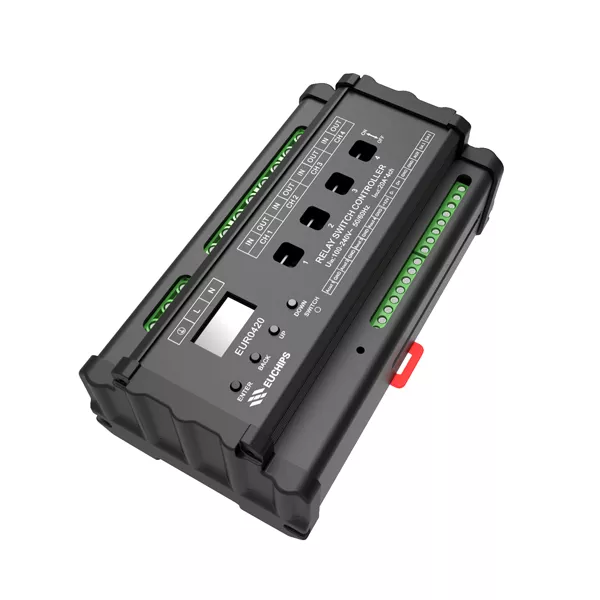

20A*4ch Relay Switch Controller EUR0420
The product adopt advanced microcomputer control technology, analysis widely used DMX-512 (1990) /RDM,DALI standard protocol ,and EU-BUS protocol developed by EUCHIPS, output 4 relay switch signal and their synchronous 0-10V DC control signal. The max current of each channel of relay switch is 20A,the total 4 channel is 80A , the max current of each channel of 0-10V is 20mA.In addition, the device can be connected into the Dynalite system by the Dynalite gateway (Note: the Dynalite trademark holder is PHILPS, the relevant right is owned by the holder of the trademark, the same below)
Features
Projects
General Features for 20A*4ch Relay Switch Controller EUR0420
Meets DMX512(1990)/RDM,DALI IEC62386 protocol and EU-BUS protocol developed by EUCHIPS –
Output 4 channel relay switch signal and their synchronous DC 0-10V control signal –
Built-in LCD, the user can operate more conveniently –
Set fades time of each channel separately, range of 0.1-60.9s –
Standard 35 mm din rail, convenient installation –
Relay switch channel can be turned on and off manually –
Can save up to 8 events –
Suitable for intelligent lighting control – Home Furnishing, office buildings, schools, stadiums, outdoor architecture etc. –
